Catalog Number - 45099-105

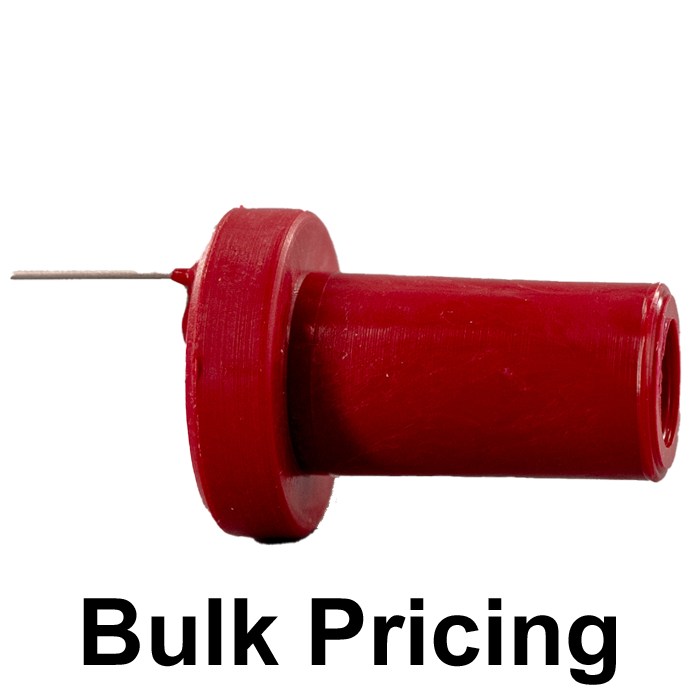

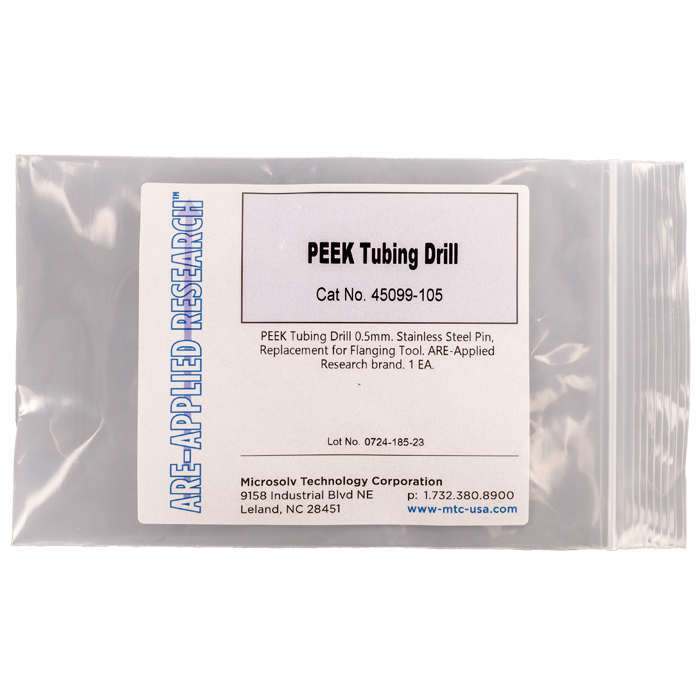

The 45099‑105 PEEK Tubing Flanging Drill is a precision replacement component designed for use with MICROSOLV flanging tool systems, enabling accurate and repeatable cold‑forming of tubing flanges on thin‑walled PEEK tubing.

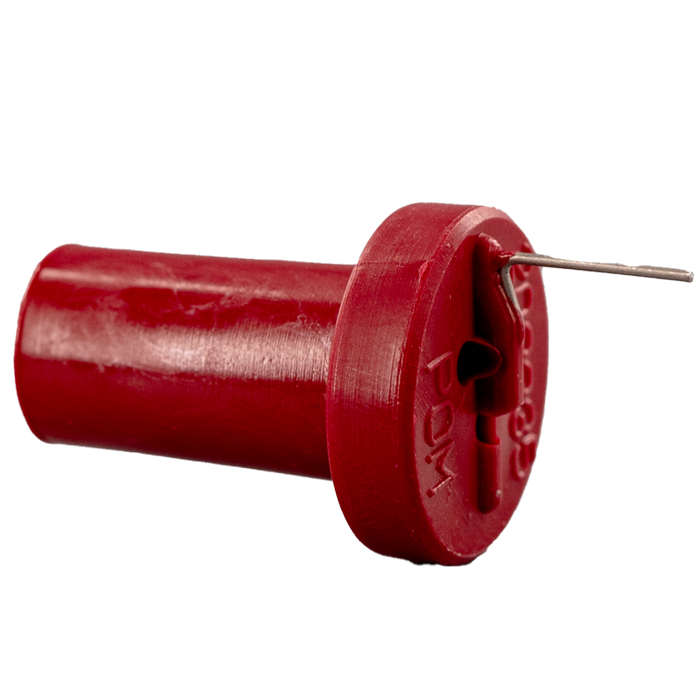

This drill features a 0.5 mm stainless steel pin, engineered to create consistent internal support during the flanging process, ensuring proper shaping of the tubing tip. When used with the flanging tool, it allows the formation of uniform, mechanically formed flares that provide reliable sealing without the need for heat.

Cold‑formed flanges produced with this drill offer key advantages, including:

• Improved dimensional stability

• Longer‑lasting flange geometry

• Reduced risk of deformation compared to heat‑formed methods

This component is essential for maintaining performance and repeatability in laboratories using flanging tools for polymer tubing preparation.

Why Use a Dedicated Flanging Drill for PEEK Tubing?

Improper flanging or worn tooling can lead to:

• Inconsistent flange geometry

• Poor sealing at connections

• Increased risk of leaks

• Reduced reproducibility in fluidic systems

The 45099‑105 flanging drill ensures:

• Precise, repeatable flange formation

• Proper internal support during flaring

• Improved connection reliability

• Consistent tubing preparation

Key Features

Designed for PEEK Tubing

• Optimized for thin‑wall PEEK tubing

• Supports high‑performance chromatography applications

Precision Stainless Steel Pin

• 0.5 mm pin diameter

• Provides internal support during flanging

• Ensures consistent flare geometry

Compatible with Flanging Tool Systems

• Direct replacement for MICROSOLV flanging tool kits

• Maintains tool performance and reliability

• Enables continued precision operation

Cold‑Forming Flange Technology

• Produces mechanically formed flanges (no heat)

• Improves durability and stability of tubing ends

• Reduces deformation risk

Typical Applications

• Flanging PEEK tubing for chromatography systems

• Replacing worn or damaged flanging drills

• Maintaining flanging tool performance

• Preparing tubing for low‑pressure connections

• Routine laboratory tubing preparation

Made‑to‑Order & Bulk Pricing Information

This is a custom, made‑to‑order item.

• Orders cannot be canceled once placed

• Custom items are non‑returnable

• Please contact Customer Service for formal quotation, lead time, and ordering assistance. Classification:

• This item is classified as a CUSTOM ITEM. View our Custom Item policy.
